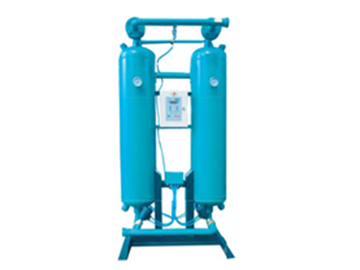

Heatless Regenerative Desiccant Air Dryer
Brand:
Apureda Air Dryer
Product Code:
Desiccant Air Dryer
Availability:
In Stock
Call for Price:
The working principle of heatless regenerative desiccant air dryer is taking the theory of Pressure Change Adsorption. The desiccant absorbs moisture of compressed air under the pipe network's pressure, then adsorption under the atmosphere pressure. Retrieving some dry air
from the outlet of dryer to dehydrate the desiccant,adsorption in one tank and desorption in the other tank, two tanks work alternately and re-cycle, so the clean and dry compressed air will be supplied continually.
Working Condition & Parameters
Air inlet Temp.:2～45℃
Dew point pressure: -20～-40℃
Working pressure: 0.6-0.95MPa
Regenerative air capacity: ≤14%
Inlet air oil content: ≤0.1PPM
Controls: computer-control
Desiccant: activated alumina
Installation method: indoor, anchor bolt installation
SPECIFICATION
|
Model |
Flow rate |
Dimension mm |
Inlet/Outlet |
Power |
Weight |
||
|
( m3/min ) |
L |
W |
H |
Size |
Supply |
（kg） |
|
|
CGDN-1 |
1.2 |
600 |
540 |
1680 |
R1/2 |
220V 50Hz SINGLE PHASE |
78 |
|
CGDN-2 |
2.3 |
739 |
700 |
1660 |
R3/4 |
150 |
|
|
CGDN-3 |
3.6 |
739 |
700 |
1906 |
R1-1/4 |
235 |
|
|
CGDN-5 |
5.2 |
900 |
885 |
1880 |
R1-1/2 |
275 |
|
|
CGDN-6 |
6.5 |
950 |
925 |
1760 |
R1-1/2 |
336 |
|
|
CGDN-8 |
8.5 |
1024 |
1000 |
1845 |
DN50 |
375 |
|
|
CGDN-10 |
11 |
1024 |
1000 |
1995 |
DN50 |
420 |
|
|
CGDN-13 |
13.5 |
1024 |
1000 |
2320 |
DN50 |
480 |
|
|
CGDN-15 |
17 |
1200 |
1000 |
2180 |
DN65 |
560 |
|
|
CGDN-20 |
22 |
1332 |
1200 |
2345 |
DN65 |
740 |
|
|
CGDN-25 |
27 |
1332 |
1200 |
2345 |
DN80 |
740 |
|
|
CGDN-30 |
32 |
1382 |
1200 |
2152 |
DN80 |
900 |
|
|
CGDN-35 |
37 |
1466 |
1200 |
2370 |
DN80 |
1140 |
|
|
CGDN-40 |
45 |
1633 |
1370 |
2464 |
DN80 |
1450 |
|
|
CGDN-50 |
55 |
1730 |
1400 |
2684 |
DN100 |
1800 |
|
|
CGDN-60 |
65 |
1936 |
1400 |
2670 |
DN125 |
2180 |
|
|
CGDN-85 |
85 |
2136 |
1500 |
2737 |
DN125 |
2500 |
|
|
CGDN-110 |
110 |
2440 |
1850 |
2912 |
DN150 |
3200 |
|
|
CGDN-130 |
130 |
3360 |
1960 |
2950 |
DN150 |
3500 |
|
|
CGDN-160 |
160 |
3360 |
1960 |
3100 |
DN150 |
4600 |
|
|
CGDN-190 |
190 |
3360 |
2060 |
3200 |
DN200 |
5500 |
|
|
CGDN-220 |
220 |
3146 |
2540 |
3490 |
DN200 |
6900 |
|
