Apureda Air Filter Assembly

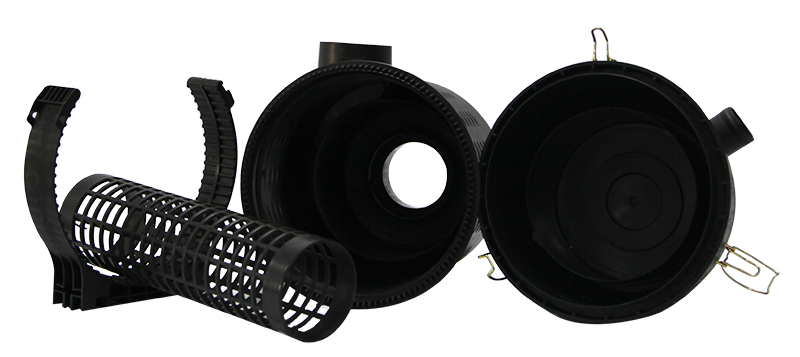

The housing is made of impact resistant polypropylene and the support is composed of strengthened nylon and stainless steel spring sheet.

The support and the cylinder could be assembled at different positions that make it be convenient for the customers to operate. The filter

element is metal-free mesh structure which is easier for recycling. The continuous working temperature range is -40℃-80℃

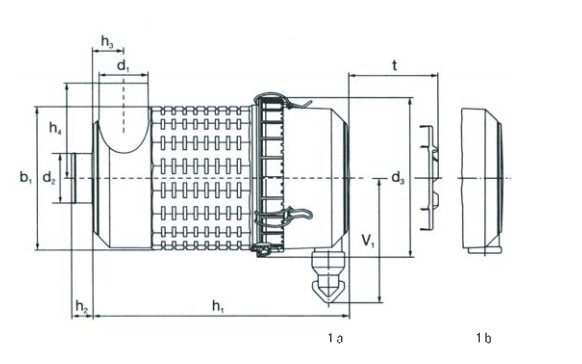

Plastic air filter assembly:

Part No.	Fig	Folw Rate m3/min	Dimensions (mm)
			b1	b2	d1	d2	d3	h1	h2	h3	h4	t
3213100031	1b	2-4.5	173	48	62	60	198	327	27	42	112	304
3213100061	1a	4-8	223	63	82	80	248	383	32	52	144	359
3213100081	1a	6-12	264	73	102	100	288	408	37	62	174	384
3213100101	1a	7.5-15	295	87	110	110	323	414	27	65	190	384
3213100201	1a	15-21	325	92	132	130	353	548	32	76	212	500
3213100301	2d	28-32	390	114	150	150	418	598	32	85	241	550
3213100201*2	1b	30-42	650	184	264	260	706	1096	64	152	424	1000
3213100301*2	1b	56-65	780	228	300	300	836	1196	64	170	482	1100

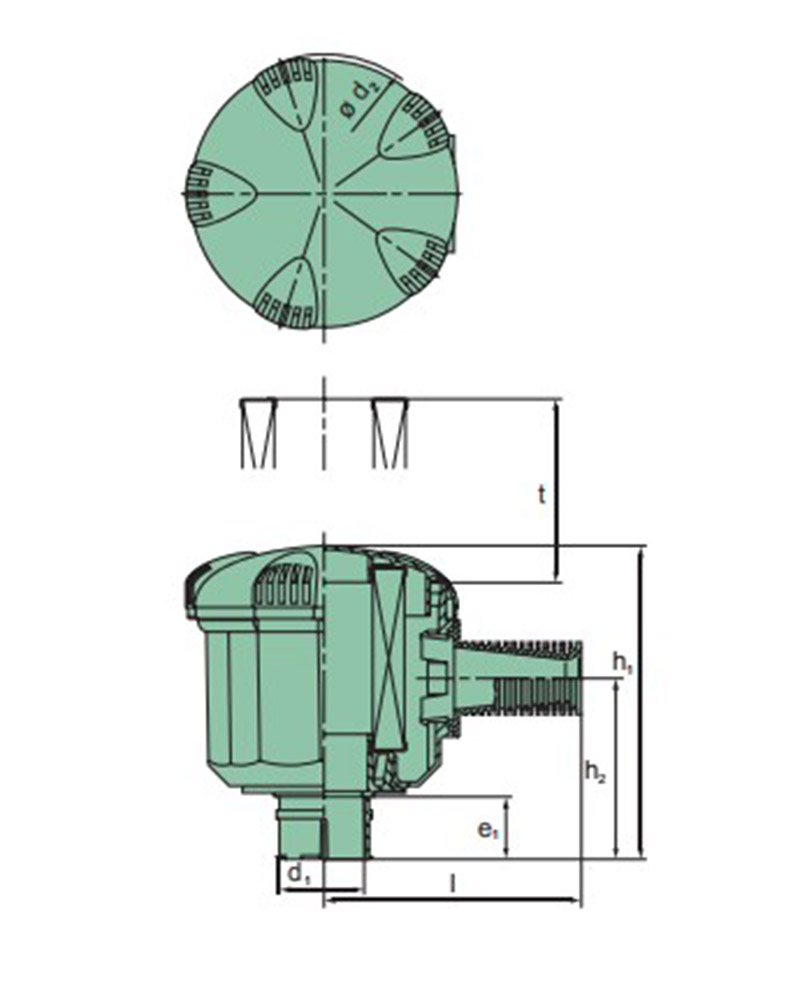

Part No.	Folw Rate m3/min	Dimensions (mm)
		d1	d2	e1	e2	h1	h2	i	t
3213100011	1-1.5	52	145	25	53	136	76	116	79
3213100012	1-1.5	60	145	25	53	136	76	116	79
3213100013	1-1.5	40	145	25	53	136	76	116	79
3213100014	1-1.5	48	145	25	53	136	76	116	79
3213100015	1-1.5	50	145	25	53	136	76	116	79
3213100021	2-3	60	181	25	59	193	117	133	135
3213100022	2-3	48	181	25	59	193	117	133	135
3213100023	2-3	50	181	25	59	193	117	133	135
3213100024	2-3	52	181	25	59	193	117	133	135

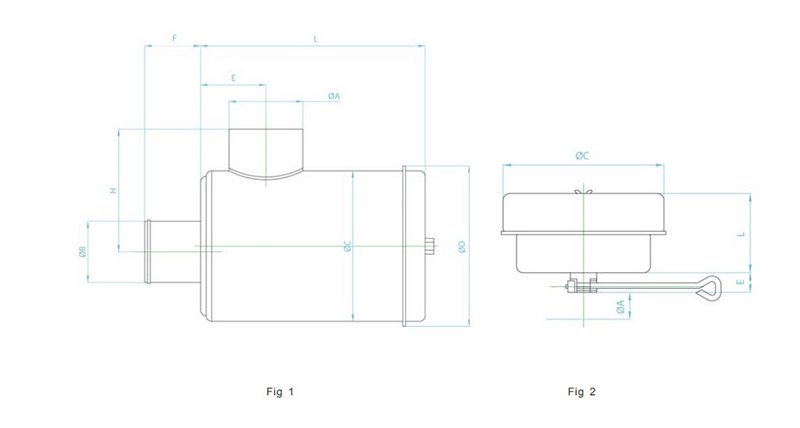

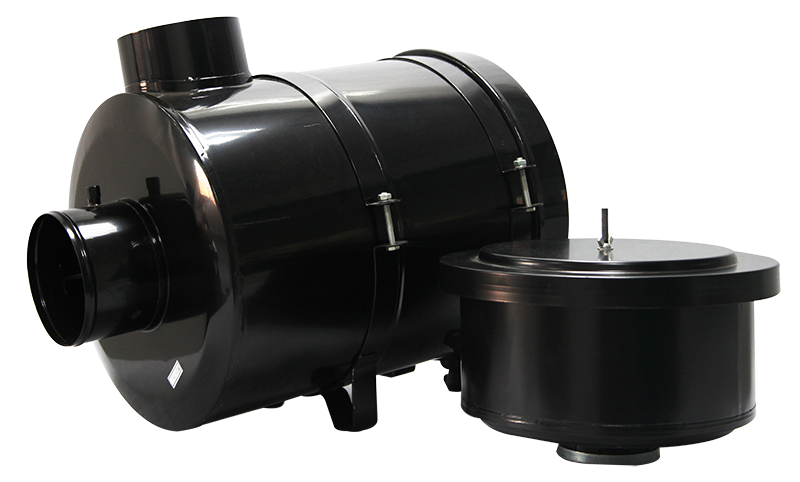

Iron air filter assembly:

Part No.	Folw Rate m3/min	Dimensions (mm)								Fig
		φA	φB	φC	φD	E	F	H	L
3212100021	2	48	48	133	146	50	60	103	160	1
3212100031	3	70	/	245	/	20	/	/	120	2
3212100041	4	76	60	165	178	83	60	118	316	1
3212100061	6	102	80	190	207	95	80	185	360	1
3212100101	10	110	100	240	258	105	85	185	385	1
3212100123	12	132	110	270	285	115	100	210	400	1
3212100202	20	152	130	356	373	125	110	257	475	1
3212100251	25	152	152	356	373	125	110	257	575	1
3212100301	30	178	178	420	422	170	105	305	540	1
3212100401	40	219	210	420	422	170	105	305	720	1
3212100501	50	200	200	420	432	80	80	310	785	1
