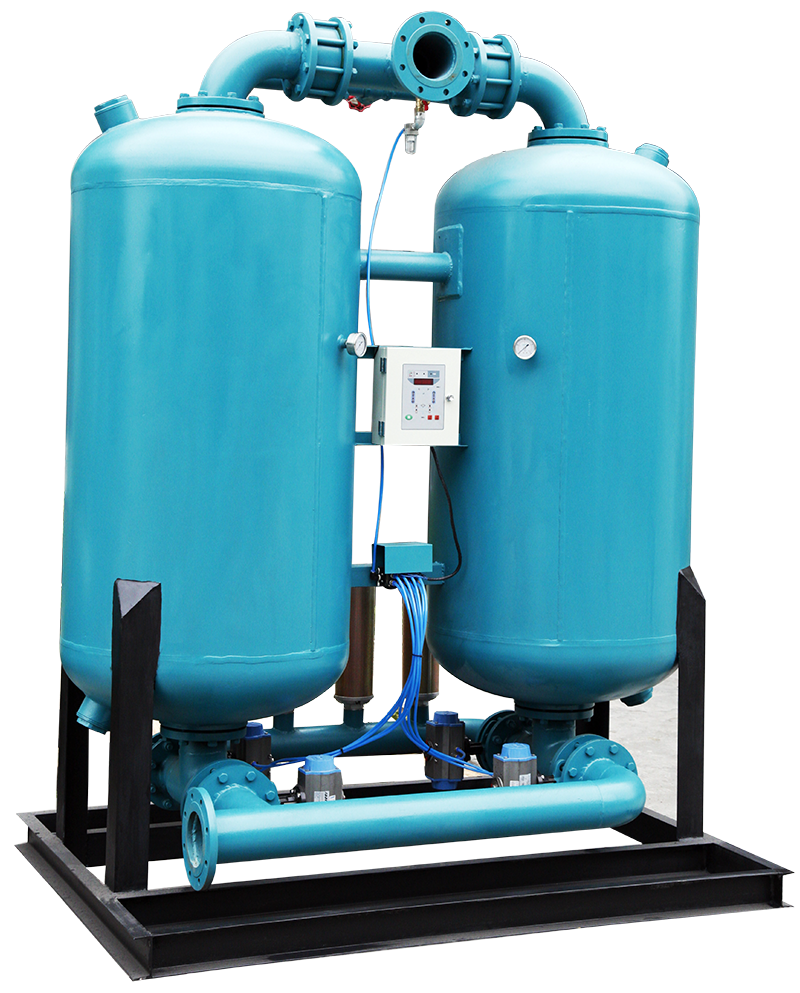

Heatless Regenerative Desiccant Air Dryer

The working principle of heatless regenerative desiccant air dryer is taking the theory of Pressure Change Adsorption. The desiccant absorbs

moisture of compressed air under the pipe network's pressure, then adsorption under the atmosphere pressure. Retrieving some dry air

from the outlet of dryer to dehydrate the desiccant,adsorption in one tank and desorption in the other tank, two tanks work alternately and re-

cycle, so the clean and dry compressed air will be supplied continually.

Air inlet Temp.:2～45℃

Dew point pressure: -20～-40℃

Working pressure: 0.6-0.95MPa

Regenerative air capacity: ≤14%

Inlet air oil content: ≤0.1PPM

Controls: computer-control

Desiccant: activated alumina

Installation method: indoor, anchor bolt installation

SPECIFICATION
