Apureda Industry's air water separator utilizes the theory that combines the centrifugation, afflux, gravity and collision.
As the necessary pre-treatment device of compressed air pipeline filter, refrigeration air dryer and desiccant air dryer,
our air water separator can effectively remove the liquid moisture in the compressed air.
Parameters:
MaxWorkingPressure：1.6MPa
DrainageEfficiency：≤99%
WorkingTemperature：66℃
Remarks: 1.1.6Mpaaboveandothertypeseparatorcanalsobecustomized
2.Anydimensionsaresubjecttochangewithoutnotice.
|
Part No. |

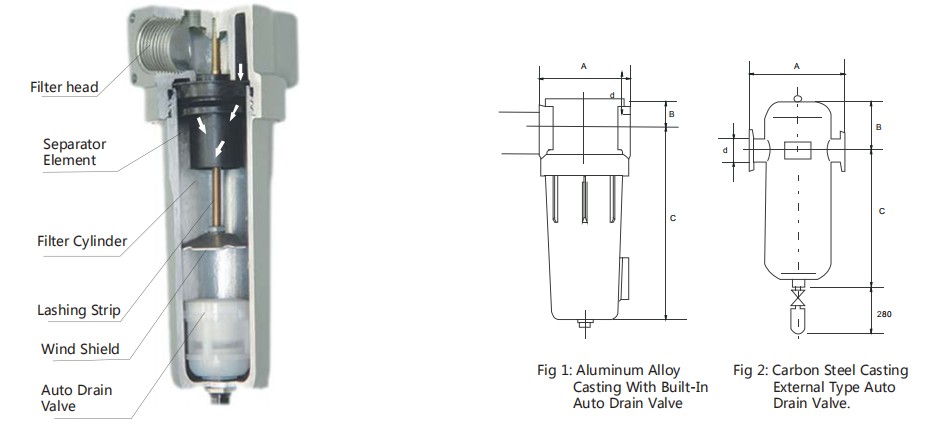

Fig |
Folw Rate |
Inlet/outlet connector |
Dimensions (mm) |
Material |
||
|
A |
B |
C |
|||||
|
AW 0150 |
1 |
1.5 ～ 2.4 |
G1/2 |
89 |
26 |
166 |
|
|
AW 0216 |
1 |
2.5 ～ 3.6 |
G3/4 |
89 |
26 |
166 |
|
|
AW 0270 |
1 |
3.7 ～ 5.4 |
G1 |
89 |
26 |
166 |
Aluminum Alloy |
|
AW 0270A |
1 |
3. 7 ～ 5.4 |
M33 X 2 |
89 |
26 |
166 |
|
|
AW 0450 |
1 |
5. 5 ～ 8. 6 |
G1 1/4 |
120 |
41 |
256 |
|
|
AW 0540 |
1 |
8.7 ～ 13 |
G1 1/2 |
120 |
41 |
256 |
|
|
AW 1200 |
1 |
14 ～ 29 |
G2 |
160 |
51 |
413 |
|
|
AW1200A |
1 |
14 ～ 29 |
M60 X 2 |
160 |
51 |
413 |
|
|
AW 2400 |
1 |
30 ～ 40 |
G2 1/2 |
216 |
65 |
660 |
Aluminum Filter Head |
|
AW 3000 |
1 |
41 ～ 50 |
G3 |
216 |
65 |
750 |
|
|
AW 2520 |
2 |
30 ～ 42 |
DN 80 |
450 |
180 |
620 |
Carbon Steel |
|
AW 3300 |
2 |
43 ～ 55 |
DN 100 |
510 |
210 |
660 |
|
|
AW 4080 |
2 |
56 ～ 68 |
DN 125 |
580 |
280 |
830 |
|
|
AW 4800 |
2 |
69 ～ 80 |
DN 150 |
750 |
300 |
910 |
|
