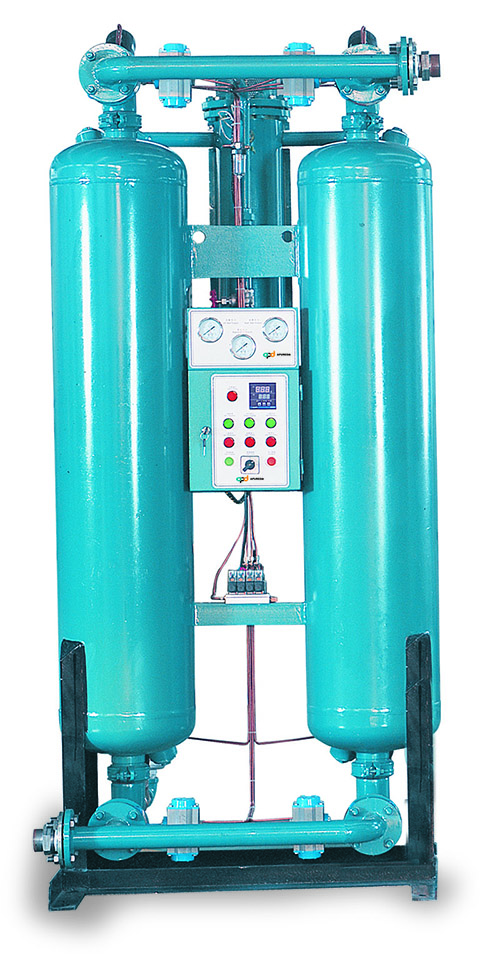

Heat purge regenerative desiccant air dryer is designed on the base of heatless air dryer by adding a heater. The regenerative air will heat the
desiccant after temperature rising, which reached better regeneration efficiency. Also reduced regenerative air consumption and achieved energy
saving.
Working Condition & Parameters
Air inlet Temp.:2～45℃
Dew point pressure: -20～-40℃
Working pressure: 0.6-0.95MPa
Regenerative air capacity: ≤7%
Inlet air oil content: ≤0.1PPM
Controls: computer-control
Desiccant: activated alumina
Installation method: indoor, anchor bolt installation
SPECIFICATION
|
Model |
Flow rate |
Dimension mm |
Inlet/Outlet |
Electrical Heating |
Power Supply |
Weight |
||
|
( m3/min ) |
L |
W |
H |
Size |
Power |
（kg） |
||
|
CGDY-3 |
3.6 |
739 |
700 |
1906 |
R1-1/4 |
1.8 |
380V 50Hz Three phases Four Lines |
300 |
|
CGDY-5 |
5.2 |
885 |
900 |
1880 |
R1-1/2 |
2.6 |
410 |
|
|
CGDY-6 |
6.5 |
925 |
950 |
1760 |
R1-1/2 |
3.6 |
500 |
|
|
CGDY-8 |
8.5 |
1024 |
1000 |
1845 |
DN50 |
4 |
580 |
|
|
CGDY-10 |
11 |
1024 |
1000 |
1995 |
DN50 |
5.1 |
655 |
|
|
CGDY-13 |
13.5 |
1024 |
1000 |
2320 |
DN50 |
6.5 |
690 |
|
|
CGDY-15 |
17 |
1200 |
1000 |
2180 |
DN65 |
7.5 |
840 |
|
|
CGDY-20 |
22 |
1332 |
1200 |
2345 |
DN65 |
10.8 |
1130 |
|
|
CGDY-25 |
27 |
1382 |
1200 |
2152 |
DN80 |
14.4 |
1245 |
|
|
CGDY-30 |
32 |
1466 |
1200 |
2150 |
DN80 |
16 |
1345 |
|
|
CGDY-35 |
37 |
1466 |
1200 |
2374 |
DN80 |
18 |
1510 |
|
|
CGDY-40 |
45 |
1633 |
1370 |
2464 |
DN80 |
22.5 |
1820 |
|
|
CGDY-50 |
55 |
1730 |
1400 |
2684 |
DN100 |
27 |
2200 |
|
|
CGDY-60 |
65 |
1936 |
1400 |
2670 |
DN125 |
34.5 |
2790 |
|
|
CGDY-85 |
85 |
2136 |
1500 |
2737 |
DN125 |
40.5 |
3500 |
|
|
CGDY-110 |
110 |
2440 |
1850 |
2912 |
DN150 |
51 |
3840 |
|
|
CGDY-130 |
130 |
3360 |
1960 |
2950 |
DN150 |
57 |
4450 |
|
|
CGDY-160 |
160 |
3360 |
1960 |
3100 |
DN150 |
72 |
5200 |
|
|
CGDY-190 |
190 |
3340 |
2060 |
3200 |
DN200 |
87 |
6100 |
|
|
CGDY-220 |
220 |
3146 |
2540 |
3490 |
DN200 |
111 |
7600 |
|
