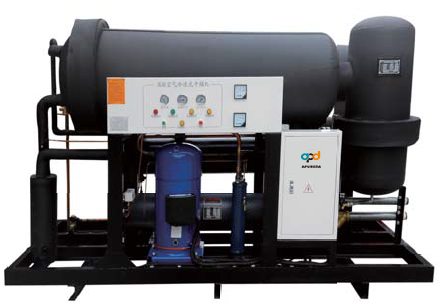

High Temp. Water Cooling Refrigerated Air Dryer
Brand:
Apureda Air Dryer
Product Code:
Refrigerated Air Dryer
Availability:
In Stock
Call for Price:
Since 2000, Apureda has been delivering quality, industry leading compressed air dryers and accessories for production lines and facilities all over the world. Our precise engineering and designs provide reliable products that will protect your operations for years to come.
Our knowledge and advanced compressed air dryer technology in the field of compressed air, gas, and fluid separation, extends from the compressor room to all points of use in the factory.
Working Condition & Parameters
Air inlet temp.：2～80℃
Pressure drop：≤5%P
Pressure dew point：2～10℃
Cooling: Water cooled
water temp.: 2～35℃
Cooled water pressure: 0.2-0.4MPa
Air inlet pressure：0.4～1.0MPa
Cooled water resource: Industrial circulated soft water
Standard working condition：
Air inlet temp.:65℃，
Air inlet pressure: 0.7MPa（G）
SPECIFICATION
|
Model |
Flow rate |
Refrigeration |
Water |
Power |
Dimension mm |
Connection |
Weight |
|||
|
( m3/min ) |
Power( W ) |
Consumption (t/h) |
supply |
L |
W |
H |
Air |
Coolant Water |
（kg） |
|
|
CFKW-60NH |
8 |
1.49 |
2.5 |
220V |
970 |
500 |
975 |
Rp1-1/2 |
R1 |
150 |
|
CFKW-75NH |
11 |
1.74 |
3.5 |
1150 |
650 |
1165 |
Rp2 |
R1 |
195 |
|
|
CFKW-90NH |
13 |
1.97 |
3.8 |
1250 |
650 |
1165 |
Rp2 |
R1 |
205 |
|
|
CFKW-100NH |
15 |
2.2 |
4.5 |
1250 |
650 |
1165 |
Rp2 |
R1 |
215 |
|
|
CFKW-125NH |
18 |
3.14 |
5.4 |
380V |
1350 |
700 |
1315 |
DN65 |
R1-1/2 |
305 |
|
CFKW-150NH |
23 |
3.8 |
7 |
1450 |
700 |
1315 |
DN65 |
R1-1/2 |
385 |
|
|
CFKW-175NH |
28 |
5.5 |
8.6 |
1550 |
850 |
1515 |
DN80 |
R1-1/2 |
445 |
|
|
CFKW-200NH |
33 |
5.8 |
10 |
1650 |
850 |
1515 |
DN80 |
R1-1/2 |
525 |
|
|
CFKW-250NH |
38 |
7.5 |
12 |
1750 |
900 |
1665 |
DN100 |
R1-1/2 |
650 |
|
|
CFKW-300NH |
45 |
8.2 |
13.5 |
1800 |
900 |
1665 |
DN100 |
R1-1/2 |
780 |
|
|
CFKW-400NH |
55 |
8.82 |
16 |
2100 |
975 |
1345 |
DN100 |
R1-1/2 |
920 |
|
|
CFKW-500NH |
65 |
11.03 |
20 |
2400 |
1200 |
1520 |
DN100 |
R1-1/2 |
1230 |
|
|
CFKW-600NH |
75 |
11.25 |
23 |
2500 |
1200 |
1520 |
DN125 |
R1-1/2 |
1350 |
|
|
CFKW-700NH |
85 |
14.7 |
25 |
2700 |
1200 |
1680 |
DN125 |
Rc2 |
1700 |
|
|
CFKW-800NH |
110 |
18.37 |
31.5 |
2900 |
1300 |
1750 |
DN150 |
Rc2 |
2300 |
|
|
CFKW-900NH |
135 |
22.05 |
36.5 |
3200 |
1300 |
1750 |
DN150 |
Rc2 |
2470 |
|
|
CFKW-1000NH |
160 |
28.8 |
50 |
2820 |
1400 |
1805 |
DN200 |
Rc2-1/2 |
2830 |
|
|
CFKW-1200NH |
190 |
33.08 |
57 |
3000 |
1450 |
1865 |
DN200 |
Rc2-1/2 |
3250 |
|
|
CFKW-1500NH |
220 |
36.75 |
65 |
3150 |
1450 |
1865 |
DN200 |
Rc2-1/2 |
3500 |
|
|
CFKW-1800NH |
260 |
44.1 |
79 |
3900 |
1750 |
2030 |
DN200 |
Rc3 |
3930 |
|
|
CFKW-2000NH |
310 |
55.13 |
93 |
4300 |
1800 |
3000 |
DN250 |
Rc3 |
4250 |
|
|
CFKW-2700NH |
410 |
73.5 |
135 |
4500 |
2000 |
3000 |
DN300 |
DN100 |
5260 |
|
|
CFKW-3500NH |
510 |
88.2 |
150 |
4800 |
2300 |
2850 |
DN300 |
DN125 |
6480 |
|
Standard of screw is in accordance with GB/T7306
Standard of flange is in accordance with HG20592
Any change of model, specification and color shall not be advised additionally, subject to the real products.
Please refer to the corresponding brochure if you order other models.
